Description
Compact and robust, the Blackmagic Micro Converter 3G series bridges HDMI and SDI workflows with ease. Designed for versatility, these converters allow seamless connection between consumer HDMI gear and professional broadcast SDI setups. Their durable, pocket-sized build makes them ideal for field use or tight studio setups. With full 3G-SDI support, they handle video resolutions up to 1080p60. Each unit draws power via USB, making them perfect for use with laptops, displays, or mobile setups. Versions are available with or without power supplies, and all models are built on Blackmagic’s own custom hardware platform for compliance with the latest global broadcast standards and upgradability.
USE ANYWHERE
Portable professional converters for flexible setups
Designed to fit in your kit bag, these converters are ideal for fast-paced environments and on-location work. Their reliability makes them trusted tools for live events, studio production, and more. Easily adapt projectors, computer monitors, or consumer TVs into calibrated broadcast monitors. Convert HDMI from laptops and handheld cameras to SDI for use with high-end infrastructure. They can also serve as a reliable way to extend HDMI signals over longer distances using SDI.
MINIATURIZED DESIGN
Built for rugged use with high-grade components
These converters feature full-size SDI and HDMI connections within a solid metal housing. Power is provided via USB-C, and configuration is done through the Blackmagic Converter Utility for macOS and Windows. LED indicators provide instant feedback on power and signal status. Models with bundled AC adapters are available, including four plug options for international use.
BROADCAST PERFORMANCE
Small footprint, big capabilities
Engineered for precision, these converters maintain low SDI jitter and reliable signal delivery even over long cable runs — a must for live production. Supporting 8-bit and 10-bit video, YUV colour space, and a broad range of SD and HD formats up to 1080p60 (including 24p and 48p), they also offer full support for embedded audio and timecode.
UPDATE AND CONFIGURE
Each unit is fully configurable via free software from Blackmagic Design. Connect over USB to rename devices for identification, assign camera numbers, or switch between SDI Level A and B. These tools simplify routing and multi-camera workflows in live production settings.
3D LUT MONITORING
On-set colour accuracy made easy

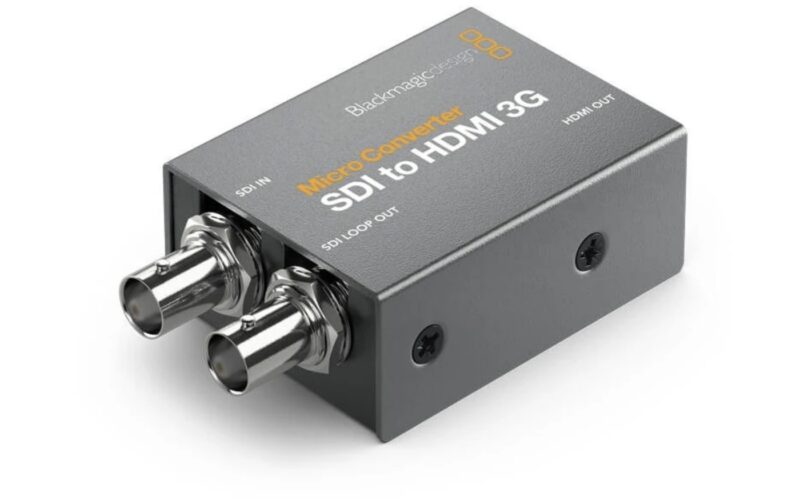

The SDI to HDMI 3G variant includes support for 3D LUTs, enabling accurate colour preview directly on set. These LUTs can be applied to the SDI loop output, transforming the converter into a real-time LUT processor. Use DaVinci Resolve to create your own looks and upload them via USB. This makes it possible to turn any standard monitor or TV into a calibrated grading display.
CAMERA CONTROL
Bi-directional control between HDMI cameras and SDI switchers

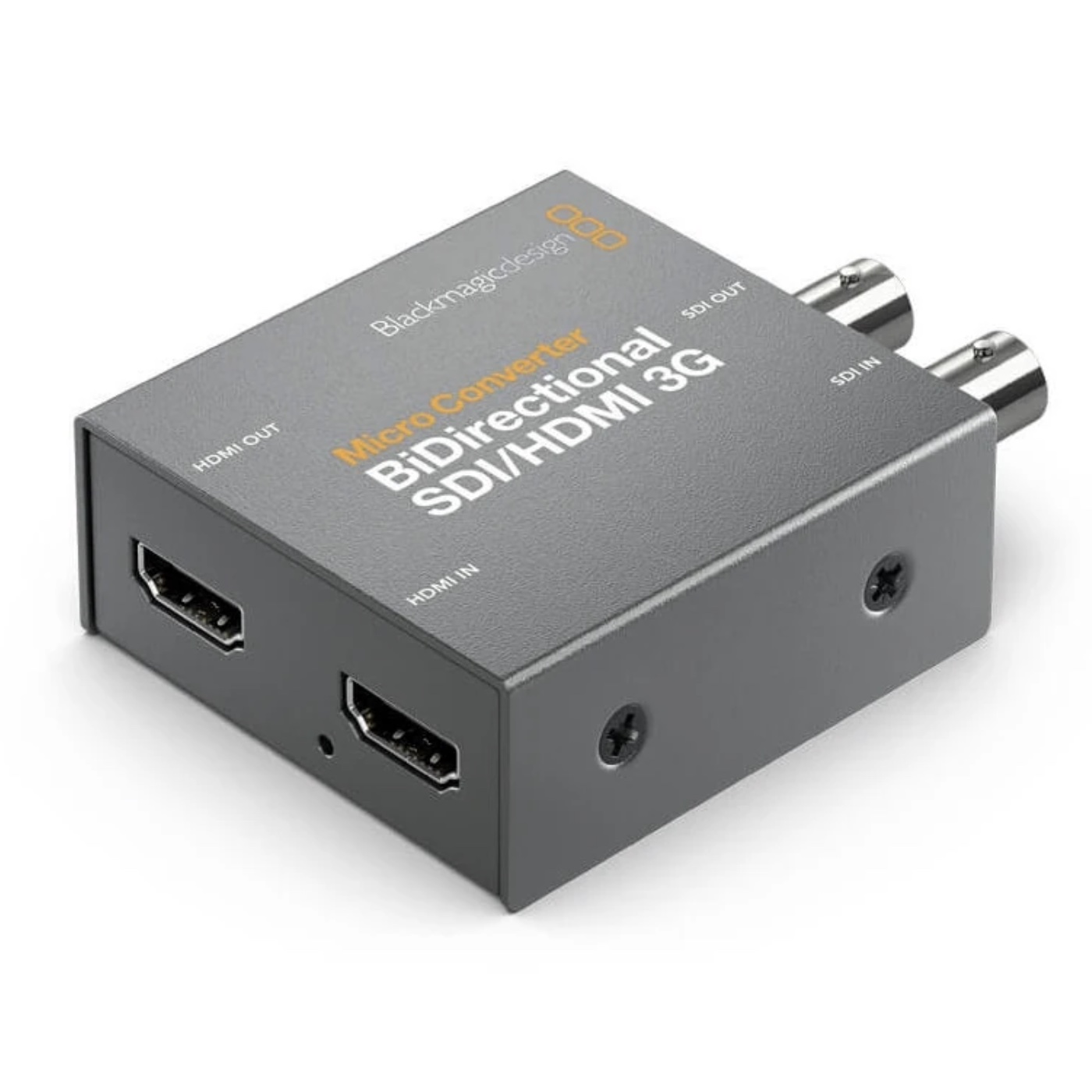

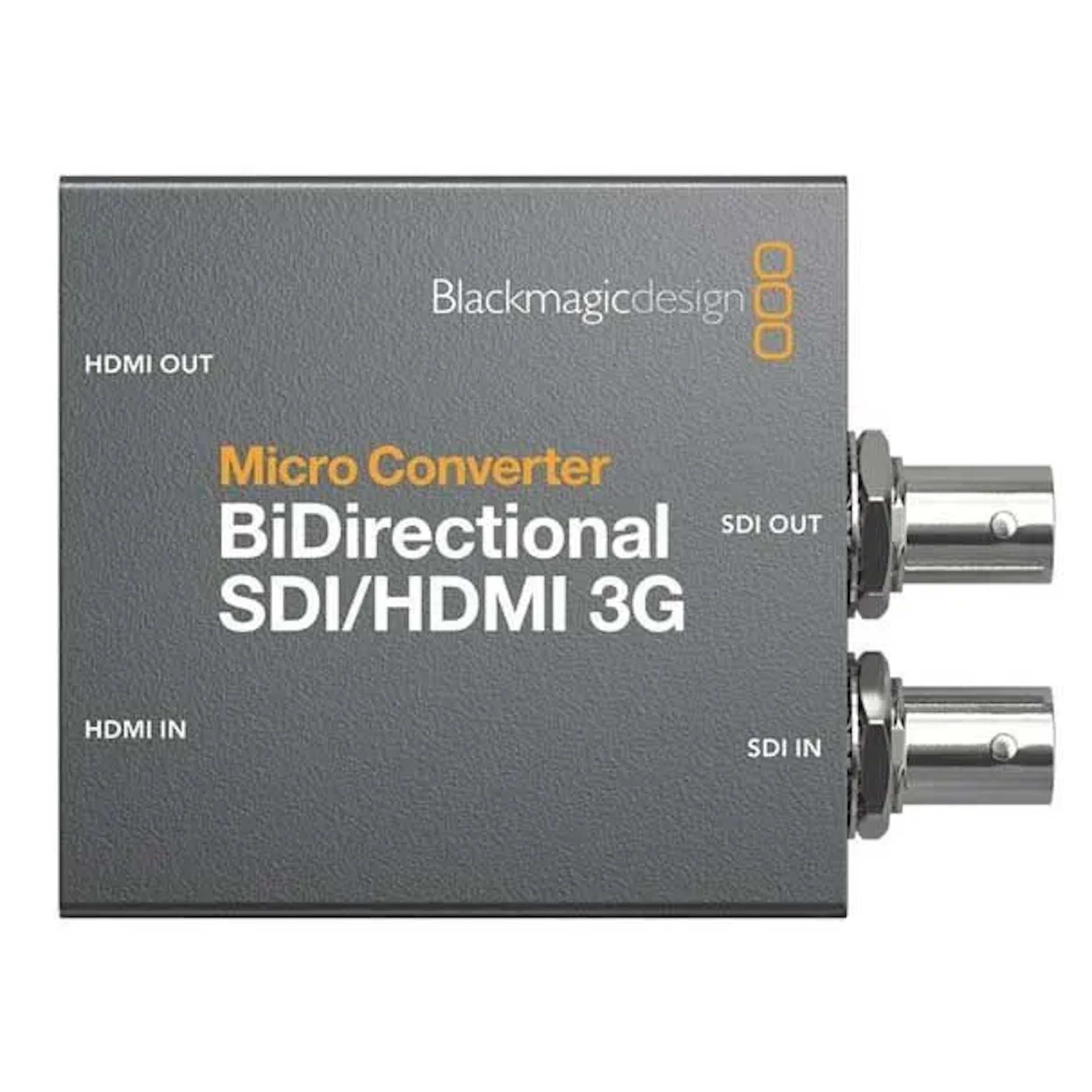

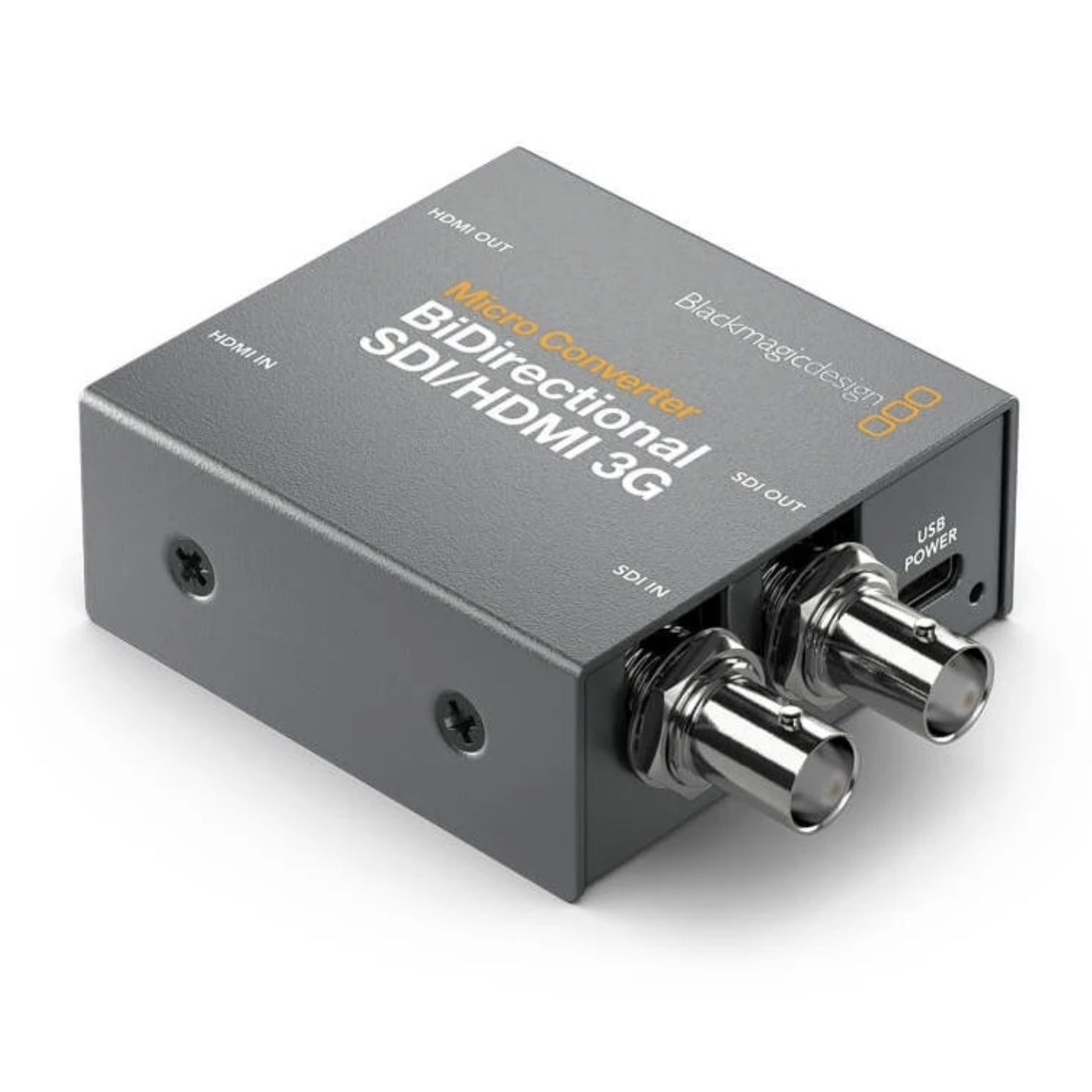

With the BiDirectional SDI/HDMI 3G model, users can integrate HDMI-based Blackmagic Pocket Cinema Cameras with ATEM SDI switchers. Camera control, tally, and remote record triggers are passed through. It also works in reverse, allowing SDI cameras to be controlled via HDMI switchers like the ATEM Mini.
HDMI TIMECODE COMPATIBILITY
The updated hardware inside the 3G Micro Converters now supports HDMI and SDI timecode workflows, essential for synchronised multi-camera shoots. This ensures accurate timecode translation between HDMI devices and professional SDI environments, whether you’re working in SD or HD formats.
SDI RE-CLOCKING
Enhanced signal stability over long cable runs
The integrated re-clocking circuit regenerates SDI signals to reduce jitter and extend the usable length of cabling. This ensures clean, dependable video output even when used with degraded cables. These converters meet strict broadcast compliance standards including SMPTE 259M, 292M, 296M, 424M, and 425M.
SUPPORTED FORMATS
Broad format support for flexible integration
SDI support includes: 525i59.94 NTSC, 625i50 PAL, 720p50/59.94/60, 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60, 1080PsF25/29.97/30, 1080i50/59.94/60, and 2K DCI frame rates from 23.98p to 60p.
HDMI compatibility covers the same resolutions, with support for both 3G-SDI Level A and Level B signalling.
POWER OPTIONS
Multiple powering solutions for any production
These converters can be powered through USB-C — the same cable standard used for modern computers and mobile devices. An optional AC power supply is also available
